Back to Basics: What do we know about clear aligner treatment?
In this series of extra posts, we return to the “Back to Basics” posts by Martyn Cobourne. This time, he will cover the evidence on clear aligner treatment. This first post is concerned with the effectiveness of tooth movement with aligners.
Tooth movement and aligners
The data relating to the clinical effectiveness of aligner tooth movement is mainly based upon small volume retrospective or prospective clinical studies, which generally compare digital treatment predictions with digitally achieved outcomes using regional superimposition techniques on the dentitions.
Aligners rarely achieve the predicted tooth movement, and the effectiveness of aligner treatment will vary depending upon the type of tooth movement being attempted and the type of tooth it is being attempted on.
We have summarised the data below based on relevant systematic reviews (Rossini et al., 2015; Robertson et al., 2019; Koletsi et al., 2021) and where not explicitly covered within these systematic reviews, the most contemporary original data (Simon et al., 2014; Haouili et al., 2020.

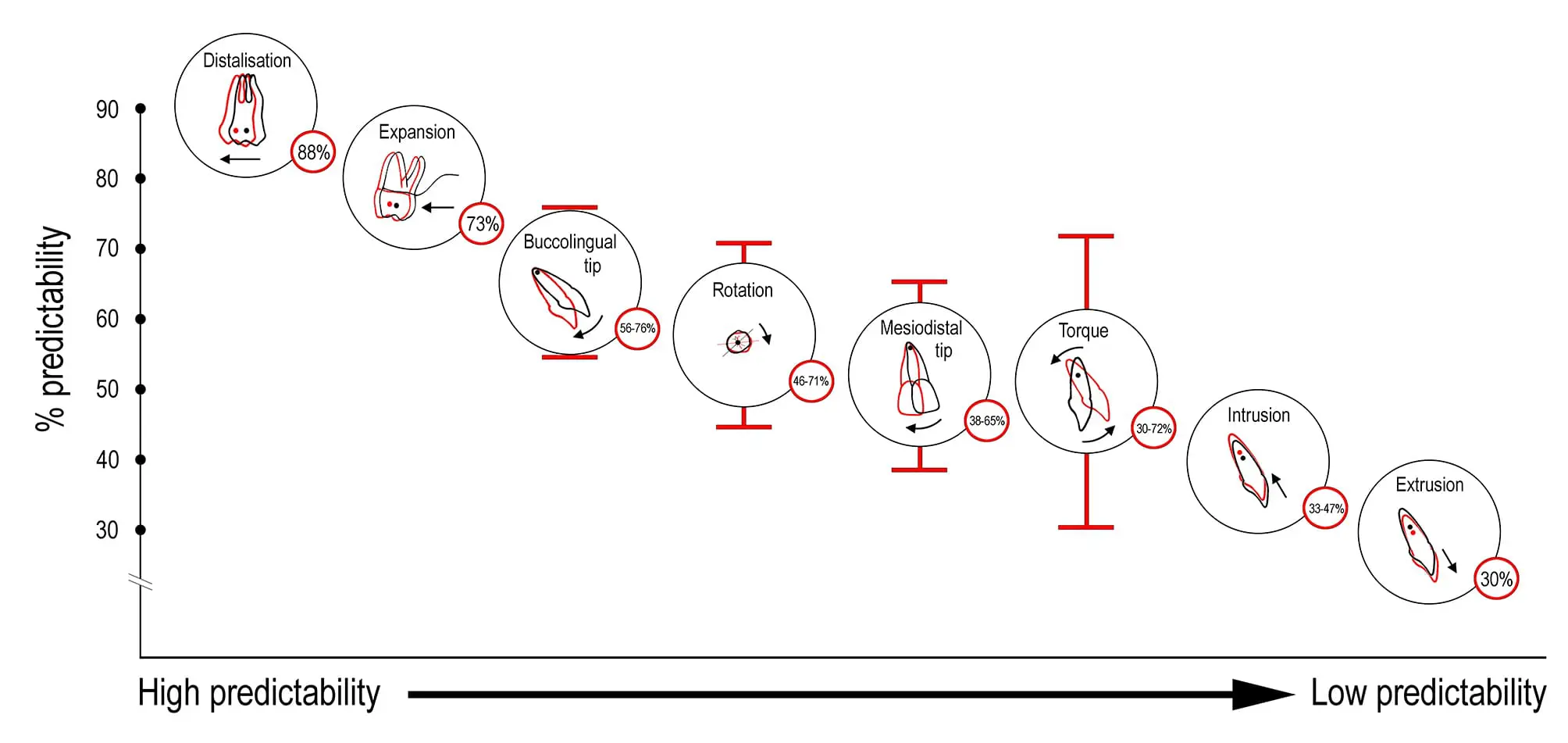

We have also presented the data in this graphic.
The data
These data relate primarily to the Invisalign® system, and as you can see, there is wide variation in reported effectiveness. It would also be nice to categorise data on effectiveness relating to each type of tooth movement and tooth, but the data is not there.
- Overall accuracy for all tooth movement using clear aligners is around 50% (Haouili et al., 2020) and significant differences between predicted and actual tooth movement should be expected; however, these differences in predictability depend upon the type of tooth movement,
- The predictability of tooth movement seems to be improved if the aligners are changed every 2 weeks (Castroflorio et al., 2023);
- Maxillary molar distalisation has a reported predictability of 88% (Simon et al., 2014), with the movement of 2-3 mm seemingly achievable, although the evidence base is very low (Verma & George, 2021);
- Expansion of the maxillary and mandibular dentition is associated with 73% and 88% predictability, respectively. The tip is more predictable than bodily movement, and predictability generally gets worse from canine to first molar; expansion of around 1.5 mm is achievable (Houle et al., 2017; Zhou & Guo, 2020);
- Buccolingual tipping accuracy is around 56% overall, extending up to 76% for labial tipping of the maxillary lateral incisor (Haouili et al., 2020);
- Rotational accuracy ranges from 46-71%; canines have the lowest percentage accuracy (48% for maxillary; 50% for mandibular) and mandibular incisors and premolars the highest (71% and 67%, respectively) (Rossini et al., 2015; Haouili et al., 2020; Koletsi et al., 2021);
- Mesiodistal tipping accuracy ranges from 38-65%, with mesial tipping of the mandibular lateral incisors being the least accurate and mesial tipping of the maxillary second premolar the most accurate (Haouili et al., 2020);
- Torque for the maxillary central incisor ranges from 30-72% with an average of 51% (Simon et al., 2014);
- Intrusion is achieved with an accuracy ranging from 33-47% (maximum accuracy for maxillary and mandibular central incisors; minimum accuracy for maxillary lateral incisors); an average amount of 0.72 mm true intrusion was generally attempted (Haouili et al., 2020; Rossini et al., 2015);
- Extrusion is one of the most challenging movements for aligner systems to achieve (only 30% accuracy overall), with the lowest accuracy associated with maxillary and mandibular central incisor regions (18-25%, respectively); an average amount of 0.56 mm extrusion was generally attempted (Rossini et al., 2015)
- Regarding the irregularity index, a decrease of 4-5 mm in the incisor regions is achievable with aligners (Rossini et al., 2015).
The next of these posts is on the effects of attachments on aligner efficiency.
Martyn Cobourne is Professor of Orthodontics at King’s College London. He also runs the excellent Evidence Based Orthodontics Facebook Group and the Evidence Based Orthodontics Course.
Bibliography
Thank you Martyn for the nice summary. In my experience, where it get tricky to combine results for different studies is the knowledge or lack off if the clinicians treatment planning did or not exaggerate the expected movements aware of the potential limitation of the planned movement. In other words, they may have overcorrected by 50% a specific tooth movement in which case a final result showing a 45% correction could be considered successful.
Carlos – I agree. But I also find that caveat very misleading. Of course it is a favorite of all the Invisalign KOL’s. They often state that they plan “force systems” and not “final tooth positions”.
However, as any clinician knows, the issue with some moments like extrusion and PM rotations is the loss of attachment engagement. Once it is lost, there’s no hope. So if a maxillary lateral incisor needs to extrude 2mm – there’s no point in extruding it 4mm on the clincheck with the hope of achieving 50% movement. The tooth will extrude only until the attachment stops tracking. So doing a “force system” actually makes no sense in that instance. If the attachment stays engaged, you’d actually been in a bad situation.
The same goes for a PM rotation – there’s no sense in over-rotating, since it will only rotate until attachment stops engaging. You might want to over-rotate a little just because of “relapse potential” but if a PM is rotated 30 degrees you aren’t going to plan 60 degrees in the hope to achieve half.
Of course, for some movements – like expansion – it does make sense to over compensate. But for me those darn anterior extrusions (esp. max laterals) and PM/Cuspid rotations are the most frustrating aspect about aligners.
You’ve articulated what I’ve been wondering about those clinchecks that are grossly overcorrected. Also some teeth respond 90% and some 50% but you can’t necessarily control which ones, so designing overcorrection can be difficult.
Yes, this makes sense, Shawn. The biomechanical response is multifactorial. My point was about how the reported percentage of change should be considered based on what was initially planned. Not if the initial plan was reasonable or not. Martyn is to discuss attachment design in the next blog. Clinical experience should help us decide what type and amount of specific tooth movement is highly unlikely to work out. Clinical uncertainty always exists to different degrees. A hybrid approach is a more reasonable approach for a lot of the malocclusions.
I respectfully disagree with the math logic in your comment, according to your logic, 50% of the designed movement is considered desired movements, and 50% is overcorrection. This means 100% overcorrection as a method of aligner setup. I can’t imagine any practicing doctor adopting such extensive overcorrection.
Fair point. I intended to raise the point that what is reported as a percentage of change may represent change related to the planned movements, which may have a degree of planned overcorrection based on the uncertainty of the system. I could have used a smaller percentage of planned overcorrection to make the same point.
